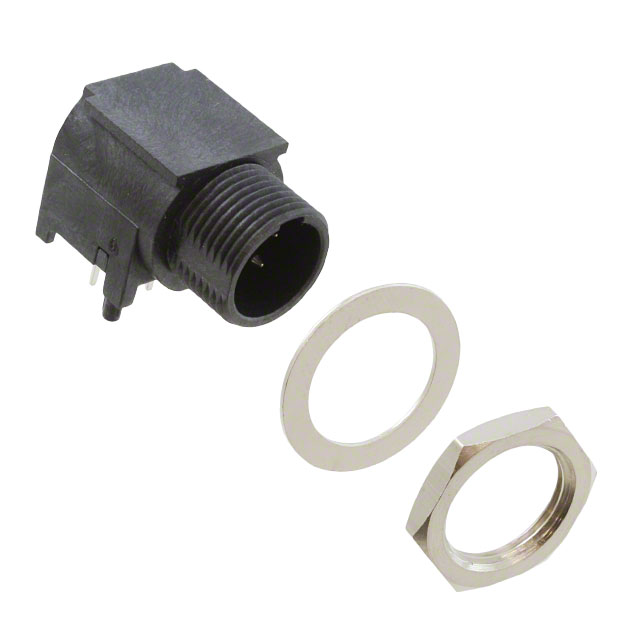

TRAPC5MX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TRAPC5MX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TRAPC5MX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TRAPC5MX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE MINI XLR 5P SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $2.418 | $1.951 | $1.782 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.697 | $1.612 | $1.473 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TRAPC5MX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE MINI XLR 5P SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21500 pcs | Data sheet | TRAPCxX, TRASMxX Series DrawingTRASM_M,TRAPC_M Bulletin |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | Mini XLR |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Tini Q-G® TRAPC | Packaging | Bulk |
| Other Names | SC2056 TRAPC5M TRAPC5M-ND TRAPC5MX-ND |
Orientation | Keyed |
| Operating Temperature | - | Number of Positions | 5 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Lock |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Tin | Current Rating | 5A |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Audio, Medicat, Testing Equipment & Measurement |
