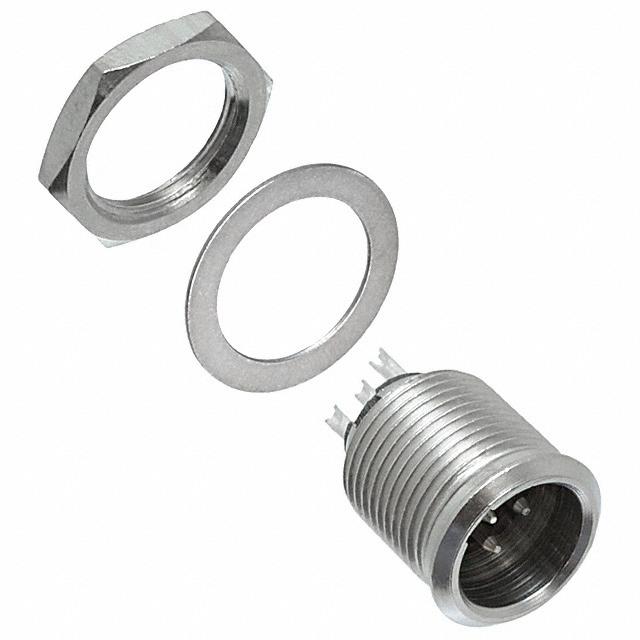

TB5M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TB5M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TB5M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TB5M |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT ML MINI XLR 5P SDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.777 | $2.891 | $2.819 | $2.602 | $2.51 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TB5M | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT ML MINI XLR 5P SDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13949 pcs | Data sheet | Connectors Tini-Q-G SeriesTBxM Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | Mini XLR |
| Shell Material | Copper Alloy | Shell Finish | Nickel |
| Series | Tini Q-G® TB | Packaging | Bulk |
| Orientation | Keyed | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 5 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | - |
| Features | Ground | Fastening Type | Latch Lock |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 4A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Audio |
