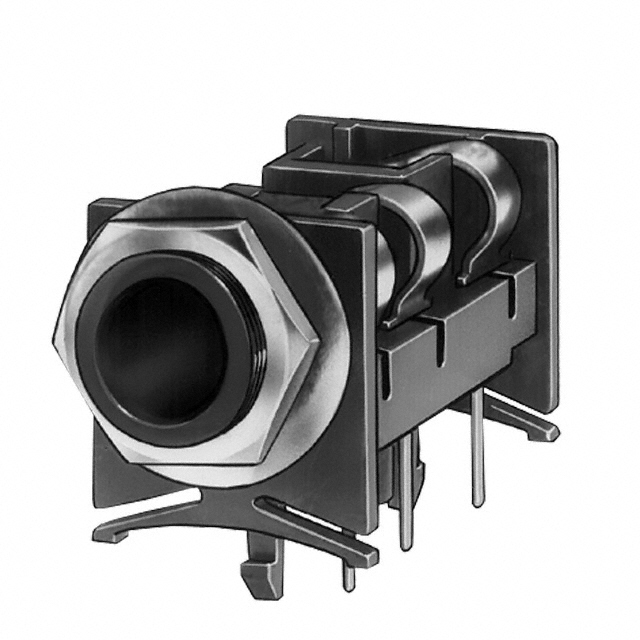

SN49B12B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SN49B12B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SN49B12B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SN49B12B |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.896 | $0.723 | $0.663 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.633 | $0.603 | $0.589 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SN49B12B | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 6.35MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59353 pcs | Data sheet | Jack SchematicsSN49Bxx Series Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | 3/8"-32 | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | SN49B | Panel Hole Size | - |
| Packaging | Bulk | Other Names | Q1147436 SC1502 SC1502-ND SC1522 SN49B12B-ND |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Thermoplastic | Gender | Female |
| Features | Mounting Hardware, Thread Lock | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Contact Material - Plating | Nickel | Contact Material | Brass |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.250" (6.35mm) |
