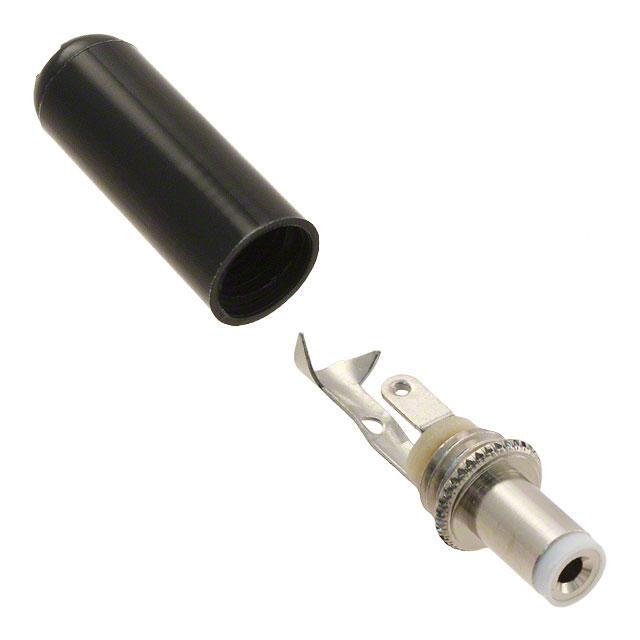

S760
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S760 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S760 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S760 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PWR PLUG 2X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.779 | $0.719 | $0.677 | $0.657 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.626 | $0.616 | $0.604 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | S760 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR PLUG 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55420 pcs | Data sheet | S760, S765 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | SC1052 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Black | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | Includes | 2 pcs - 1 Connector, 1 Handle |
| Housing Material | Thermoplastic | Gender | Female |
| Features | - | Detailed Description | Power Barrel Connector Plug 2.00mm ID (0.079"), 5.50mm OD (0.217") Free Hanging (In-Line) |
| Current Rating | 5A | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Plug |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.078" (2.00mm ID), 0.217" (5.50mm OD) |
