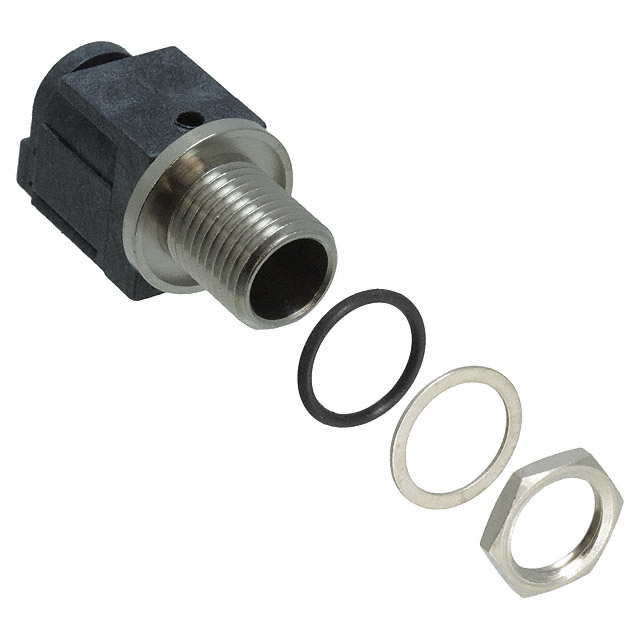

RASPC10S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RASPC10S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RASPC10S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RASPC10S |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PWR JACK 2X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.178 | $1.757 | $1.605 | $1.528 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.452 | $1.299 | $1.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RASPC10S | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PWR JACK 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24143 pcs | Data sheet | Power Jacks, Plugs Bulletin |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | 5/16"-32 | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | SC1935 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | IP68 |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | Includes | 4 pcs - 1 Connector, 1 Nut, 1 O-Ring, 1 Washer |
| Housing Material | Thermoplastic | Gender | Male |
| Features | - | Detailed Description | Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole |
| Current Rating | 11A | Contact Material - Plating | Tin |
| Contact Material | Copper Alloy | Connector Type | Jack |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.078" (2.00mm ID), 0.252" (6.40mm OD) |
