PD3MSC1

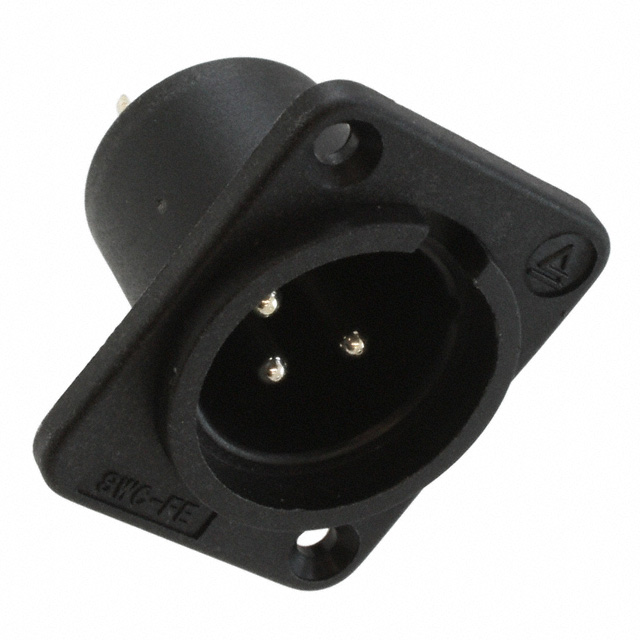

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD3MSC1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD3MSC1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD3MSC1 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE XLR 3POS SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.847 | $0.686 | $0.629 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.60 | $0.572 | $0.558 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD3MSC1 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE XLR 3POS SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55749 pcs | Data sheet | PD3MSC1,2,3(AU) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | XLR |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Q-G® PD | Packaging | Bulk |
| Other Names | PD3MSC1-ND SC1497 SC1497-ND SC1512 |
Orientation | - |
| Operating Temperature | - | Number of Positions | 3 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Thermoplastic |
| Ingress Protection | - | Features | Ground |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Circular Connector Receptacle, Male Pins Solder Cup Silver |
| Current Rating | - | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Audio |
