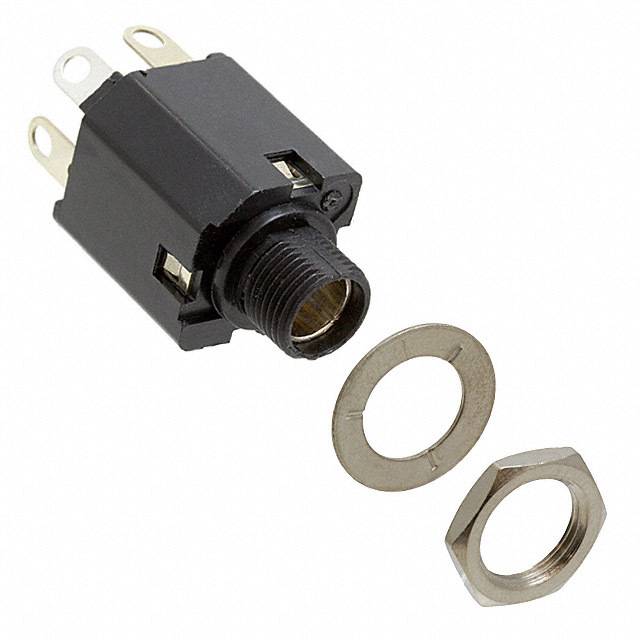

N114BX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy N114BX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy N114BX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | N114BX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.332 | $1.881 | $1.718 | $1.636 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.554 | $1.39 | $1.329 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | N114BX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26374 pcs | Data sheet | N110X, MN110X Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 48VDC |
| Thread Size | 3/8"-32 | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | N11 | Panel Hole Size | 0.375" (9.52mm) |
| Packaging | Bulk | Other Names | 1270187 N114BX-ND Q2443628 Q2849122 Q3110241 Q3224611 Q3349634 Q4963544 Q4963544BA Q5465411 SC2801 |
| Operating Temperature | -20°C ~ 65°C | Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Two Switches |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Polyester, Glass Filled |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) | Current Rating | 250mA |
| Contact Material - Plating | Tin | Contact Material | Brass |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.250" (6.35mm) |
