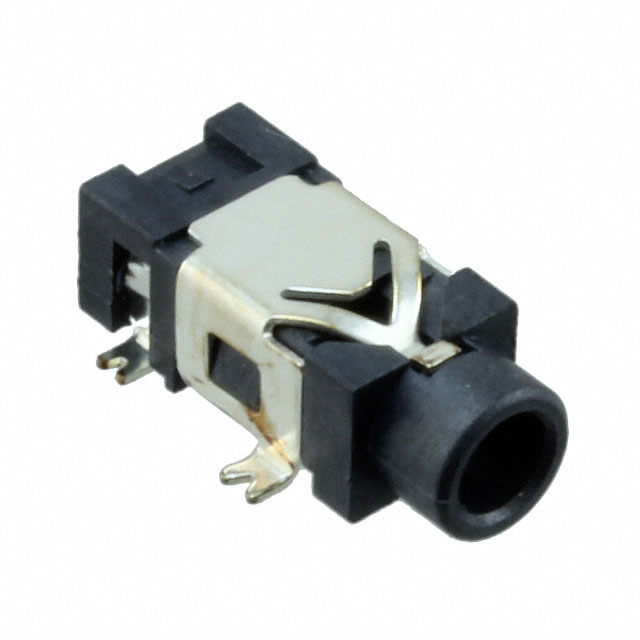

MDSMT2BRATRX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDSMT2BRATRX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDSMT2BRATRX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDSMT2BRATRX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK STEREO 2.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.046 | $1.654 | $1.516 | $1.447 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.379 | $1.206 | $1.172 | $1.12 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDSMT2BRATRX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK STEREO 2.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34957 pcs | Data sheet | Jack SchematicsMDSMT2yX, MDSMT3yX Series Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | MDSMT | Panel Hole Size | - |
| Packaging | Tape & Reel (TR) | Other Names | MDSMT2BRATRX-ND SC2793 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | Includes | - |
| Housing Material | Thermoplastic | Gender | Female |
| Features | Board Guide | Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder |
| Current Rating | 3A | Contact Material - Plating | Silver |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.102" (2.60mm) |
