EN3P5MX

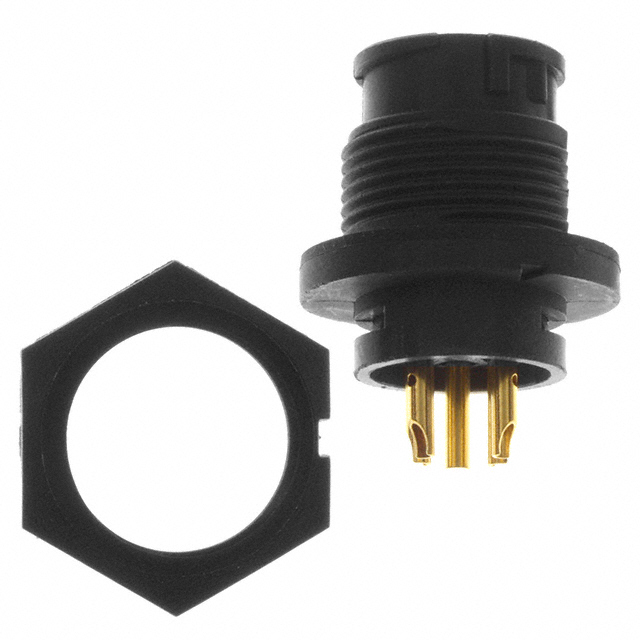

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EN3P5MX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EN3P5MX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EN3P5MX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $2.593 | $2.093 | $1.911 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $1.82 | $1.729 | $1.58 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EN3P5MX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23319 pcs | Data sheet | EN3 Series BulletinEN3PxMxx DrawingEN3 Series Part Numbering |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC/DC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | EN3® | Packaging | Bulk |
| Other Names | SC265 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 65°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Elastomer | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 7.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | General Purpose, Instrumentation, Marine, Medical |
