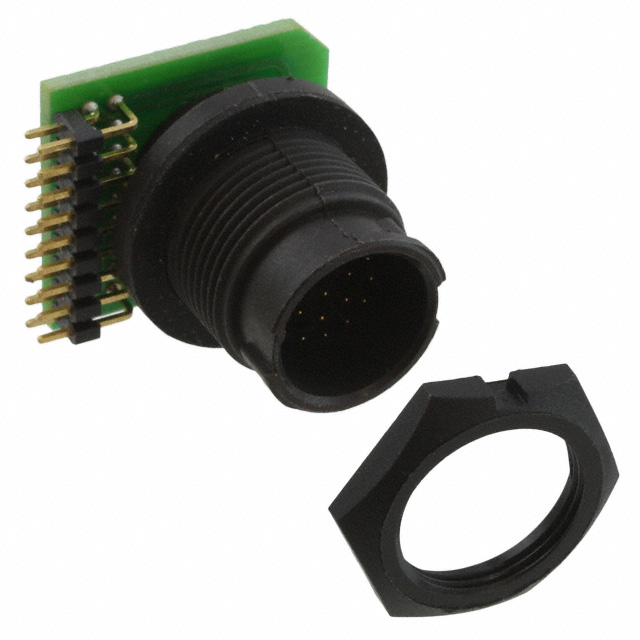

EN3P18MRAPCBN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EN3P18MRAPCBN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EN3P18MRAPCBN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EN3P18MRAPCBN |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE 18POS GOLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $7.674 | $5.834 | $5.677 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EN3P18MRAPCBN | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 18POS GOLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6605 pcs | Data sheet | EN3 Right Angle PC Board Mount |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC/DC |
| Termination | Circuit Board, Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | EN3® | Packaging | Bulk |
| Other Names | SC1749 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 65°C | Number of Positions | 18 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Elastomer | Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 18 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder Gold | Current Rating | 2A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | General Purpose, Instrumentation, Marine, Medical |
