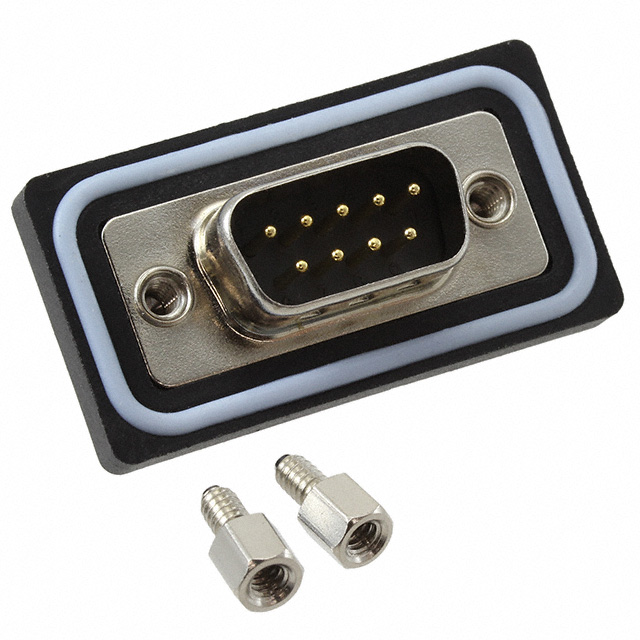

DCPDB09MSC1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DCPDB09MSC1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DCPDB09MSC1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DCPDB09MSC1 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN D-SUB PLUG 9POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.538 | $13.123 | $12.573 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $11.787 | $11.394 | $10.766 | |||
- Product parameter
Product parameter
| Part Number | DCPDB09MSC1 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2808 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | DATA-CON-X® DCP | Packaging | Bulk |
| Other Names | DCPDB09MSC1-ND SC2461 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Thermoplastic | Flange Feature | Mating Side, Female Screwlock |
| Features | Gasket | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
