Home > Products > Connectors, Interconnects > USB, DVI, HDMI Connectors > DCP-USBNB-MNHD

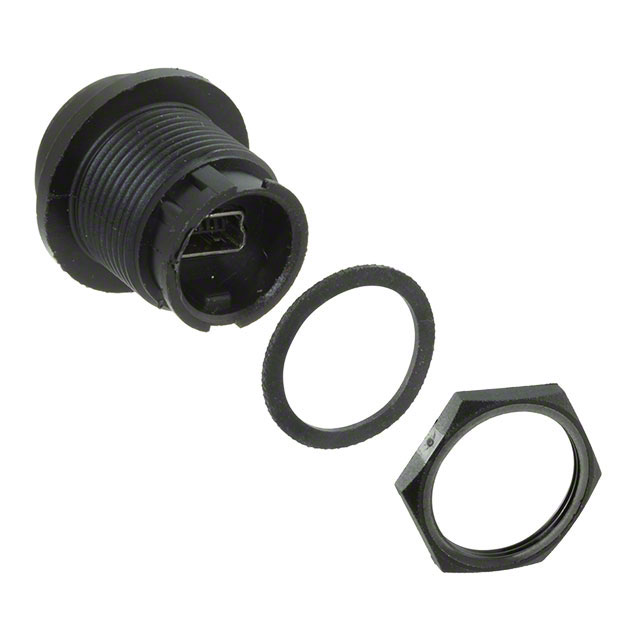

DCP-USBNB-MNHD

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DCP-USBNB-MNHD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	DCP-USBNB-MNHD
Manufacturer	Conxall / Switchcraft
Description	USB MINI-B TOPC TAILS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14508 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.899	$3.545	$3.457	$3.191
	$3.014	$2.748	$2.57	$2.561

Product parameter
Data sheet

Product parameter

Part Number	DCP-USBNB-MNHD	Manufacturer	Conxall / Switchcraft
Description	USB MINI-B TOPC TAILS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14508 pcs	Data sheet	DCC-USBNB/DCP-USBNB Series
Category	Connectors, Interconnects	Voltage - Rated	-
Termination	Solder	Specifications	USB 2.0
Shielding	Shielded	Shell/Shielding Material	Copper Alloy
Series	Data-Con-X®	Packaging	Bulk
Other Names	DCP-USBNB-MNHD-ND SC2133	Operating Temperature	-20°C ~ 75°C
Number of Ports	1	Number of Contacts	5
Mounting Type	Panel Mount, Through Hole	Mounting Feature	Bulkhead - Front Side Nut
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Cycles	500
Material Flammability Rating	UL94 V-0	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	Black
Ingress Protection	IP67/68 - Dust Tight, Waterproof	Gender	Receptacle
Features	Circular Bayonet Coupling	Detailed Description	USB - mini B USB 2.0 Receptacle Connector 5 Position Panel Mount, Through Hole
Current Rating	-	Contact Finish	Gold
Connector Type	USB - mini B
