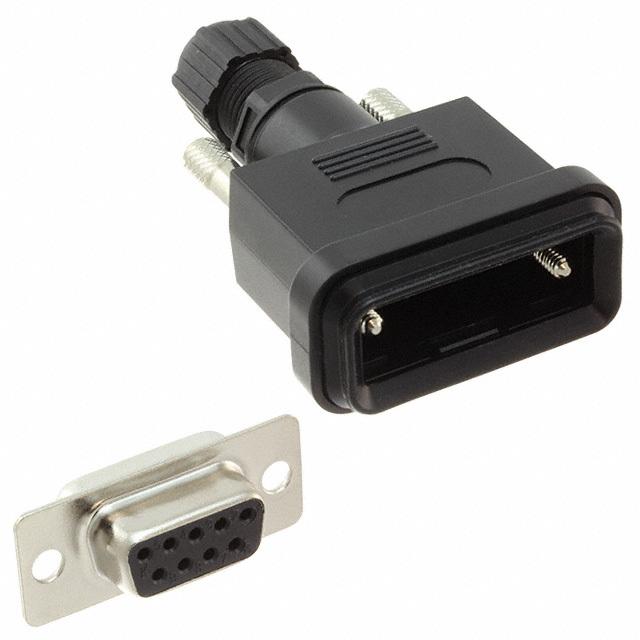

DCCDB09F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DCCDB09F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DCCDB09F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DCCDB09F |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN DSUB RCPT 9POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $13.278 | $12.848 | ||||
- Product parameter
Product parameter
| Part Number | DCCDB09F | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN DSUB RCPT 9POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2410 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | DATA-CON-X® DCC | Packaging | Bulk |
| Other Names | DCCDB09F-ND SC2458 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Thermoplastic | Flange Feature | Cable Side, Male Jackscrew |
| Features | Assembly | Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
