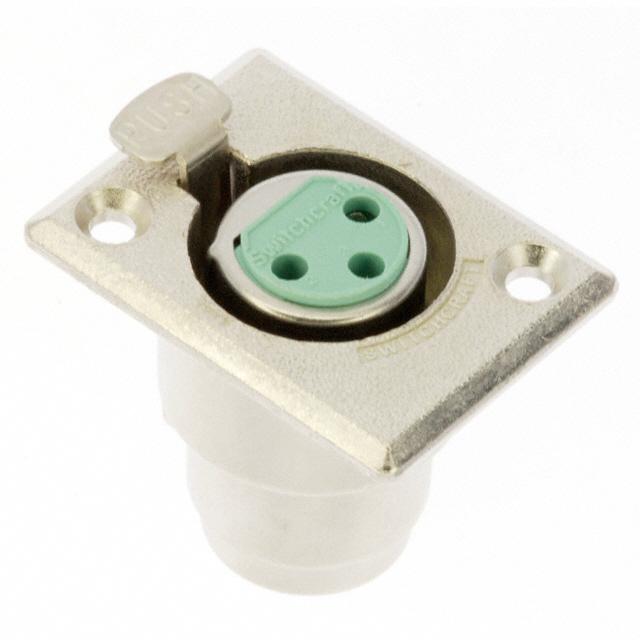

D3F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D3F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D3F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D3F |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE XLR 3POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.944 | $1.571 | $1.44 | $1.374 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.309 | $1.145 | $1.112 | $1.063 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | D3F | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE XLR 3POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37112 pcs | Data sheet | D_F Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | XLR |
| Shell Material | Stainless Steel | Shell Finish | - |
| Series | Q-G® D | Packaging | Bulk |
| Other Names | SC1009 | Orientation | Keyed |
| Operating Temperature | - | Number of Positions | 3 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyester |
| Ingress Protection | - | Features | Ground |
| Fastening Type | Latch Lock | Detailed Description | 3 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
| Current Rating | 15A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Silver |
| Connector Type | Plug, Female Sockets | Color | Silver |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Audio, Instrumentation |
