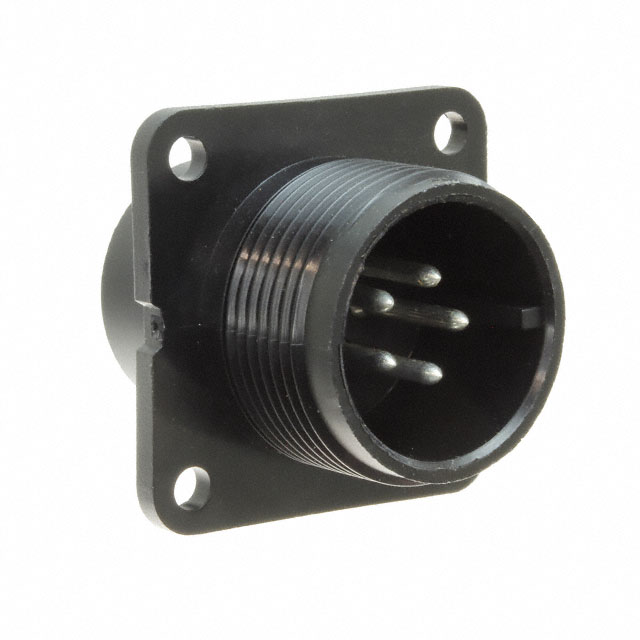

CXS3102A14S5P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CXS3102A14S5P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CXS3102A14S5P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CXS3102A14S5P |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE 5POS SILVER SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.584 | $3.427 | $3.115 | $2.96 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.882 | $2.57 | $2.414 | $2.134 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | CXS3102A14S5P | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 5POS SILVER SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14744 pcs | Data sheet | Mil-Qual® Cord Connectors Spec SheetCable Assemblies/Connector Catalog |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 14S-5 |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | MIL-E-QUAL® | Packaging | Bulk |
| Other Names | CXS3102A14S5P-ND SC3449 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | - |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Lighting |
