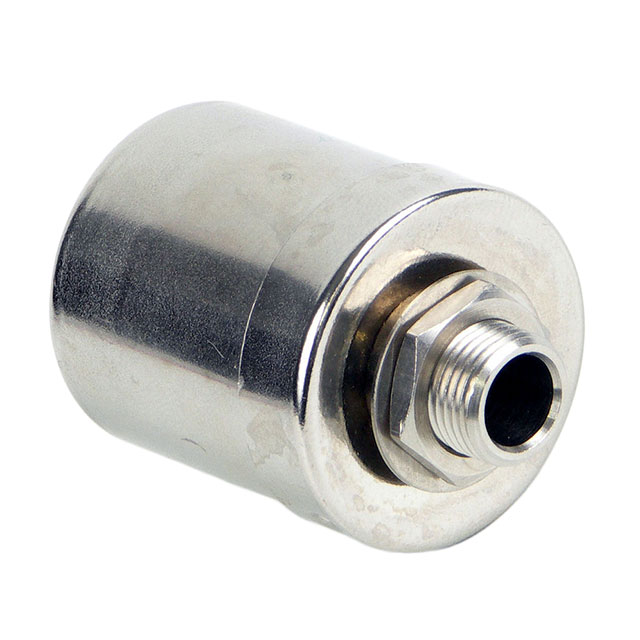

CN12A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CN12A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CN12A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CN12A |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $7.018 | $5.336 | $5.193 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CN12A | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5844 pcs | Data sheet | CN12A Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | 3/8"-32 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Shielded |
| Series | LITTEL-JAX® | Panel Hole Size | 0.375" (9.52mm) |
| Packaging | Bulk | Other Names | CN12A-ND SC2678 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | - |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s) | Contact Material - Plating | Nickel |
| Contact Material | Copper Alloy | Connector Type | Phone Jack |
| Cable Opening | 0.125" (3.18mm) | Body Material | Copper Alloy |
| Body Color | Silver | Actual Diameter | 0.250" (6.35mm) |
