AAA5MWZ

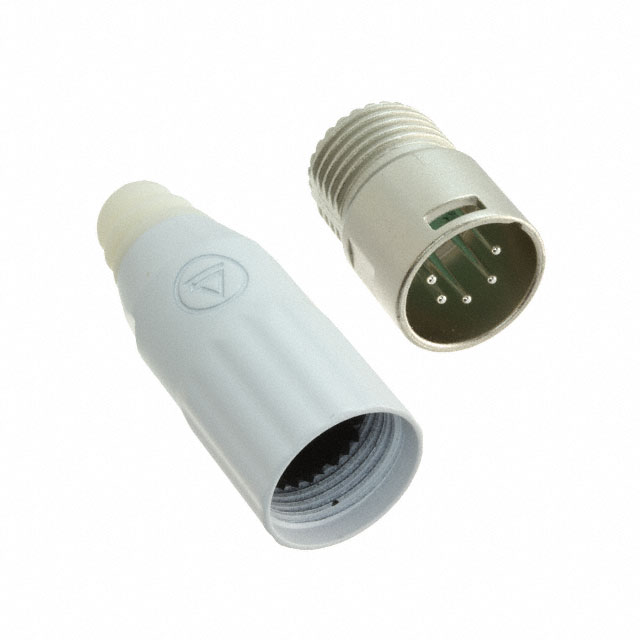

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AAA5MWZ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AAA5MWZ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AAA5MWZ |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE XLR 5POS SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.181 | $2.567 | $2.344 | $2.232 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $2.121 | $1.898 | $1.814 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AAA5MWZ | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE XLR 5POS SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19459 pcs | Data sheet | AAAxMZ Series DrawingXLR Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | XLR |
| Shell Material | Zinc Alloy | Shell Finish | Nickel |
| Series | Q-G® AAA | Packaging | Bulk |
| Other Names | SC2149 | Orientation | Keyed |
| Operating Temperature | - | Number of Positions | 5 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Thermoplastic | Ingress Protection | - |
| Features | Backshell, Cable Clamp, Ground, Strain Relief | Fastening Type | Latch Lock |
| Detailed Description | 5 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 7.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | White | Cable Opening | 0.100" ~ 0.220" (2.54mm ~ 5.59mm) |
| Backshell Material, Plating | Zinc Alloy, Nickel | Applications | Audio, Industrial, Instrumentation, Medical |
