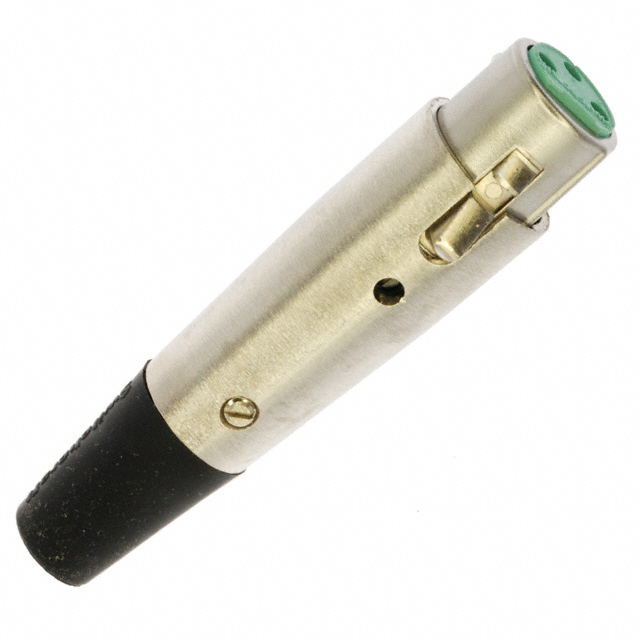

A3F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A3F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A3F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A3F |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE XLR 3POS SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.892 | $1.53 | $1.402 | $1.338 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.275 | $1.115 | $1.084 | $1.036 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A3F | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE XLR 3POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35016 pcs | Data sheet | A_F_ Series, QGP_22 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | XLR |
| Shell Material | Stainless Steel | Shell Finish | - |
| Series | Q-G® A | Packaging | Bulk |
| Other Names | SC1001 | Orientation | Keyed |
| Operating Temperature | - | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyester | Ingress Protection | - |
| Features | Backshell, Cable Clamp, Ground, Strain Relief | Fastening Type | Latch Lock |
| Detailed Description | 3 Position Circular Connector Plug, Female Sockets Solder Cup Silver | Current Rating | 15A |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Female Sockets |
| Color | Silver | Cable Opening | 0.210" ~ 0.300" (5.33mm ~ 7.62mm) |
| Backshell Material, Plating | Zinc, Nickel | Applications | Audio, Instrumentation |
