6380-5SG-522

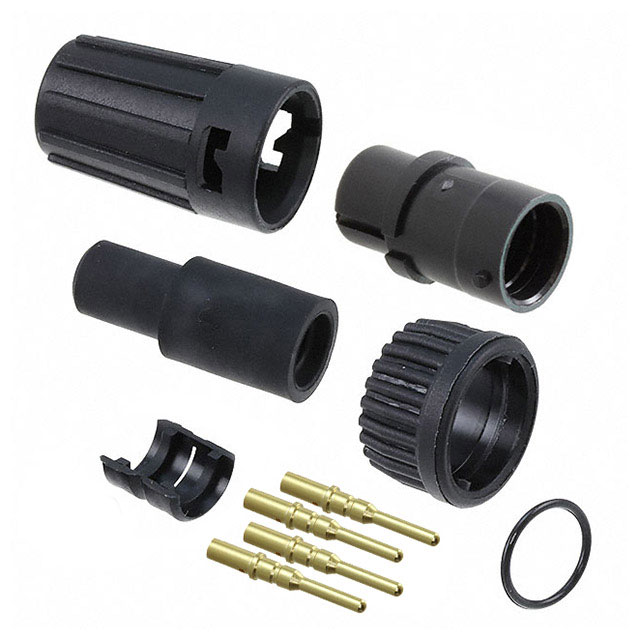

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 6380-5SG-522 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 6380-5SG-522 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 6380-5SG-522 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE 5POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.291 | $3.901 | $3.804 | $3.511 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.316 | $3.023 | $2.828 | $2.594 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 6380-5SG-522 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 5POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14619 pcs | Data sheet | Cable Assemblies/Connector CatalogMini-Con-X Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Crimp | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Mini-Con-X® | Packaging | Bulk |
| Other Names | 6380-5SG-522-ND SC3382 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 5 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | Weathertight |
| Features | Backshell | Fastening Type | Bayonet Lock |
| Detailed Description | 5 Position Circular Connector Plug, Female Sockets Crimp Gold | Current Rating | - |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 0.220" ~ 0.250" (5.59mm ~ 6.35mm) |
| Backshell Material, Plating | Polyamide (PA), Nylon | Applications | - |
