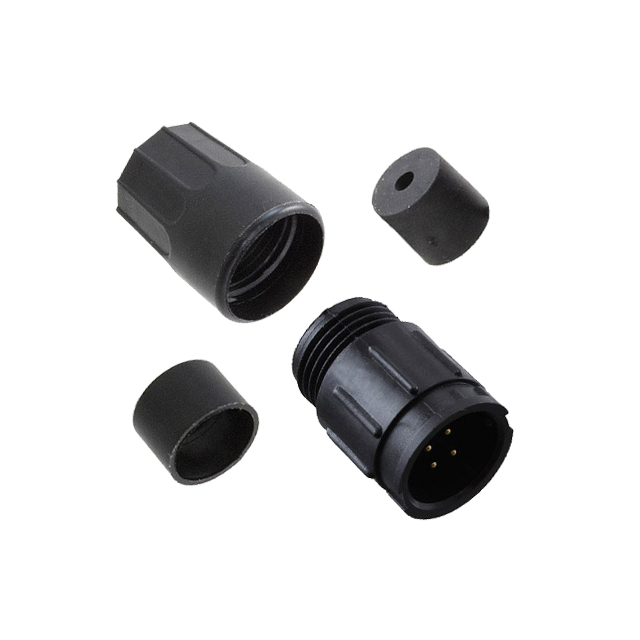

5282-4PG-315
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5282-4PG-315 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5282-4PG-315 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5282-4PG-315 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT MALE 4POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.04 | $3.673 | $3.581 | $3.306 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.122 | $2.847 | $2.663 | $2.443 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5282-4PG-315 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT MALE 4POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14509 pcs | Data sheet | Cable Assemblies/Connector CatalogMulti-Con-X Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Multi-Con-X® | Packaging | Bulk |
| Other Names | 5282-4PG-315-ND SC3421 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | Weathertight |
| Features | Backshell | Fastening Type | Bayonet Lock |
| Detailed Description | 4 Position Circular Connector Receptacle, Male Pins Solder Cup Gold | Current Rating | 5.6A |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Male Pins |
| Color | Black | Cable Opening | 0.150" ~ 0.170" (3.81mm ~ 4.32mm) |
| Backshell Material, Plating | Polyamide (PA), Nylon | Applications | - |
