480X

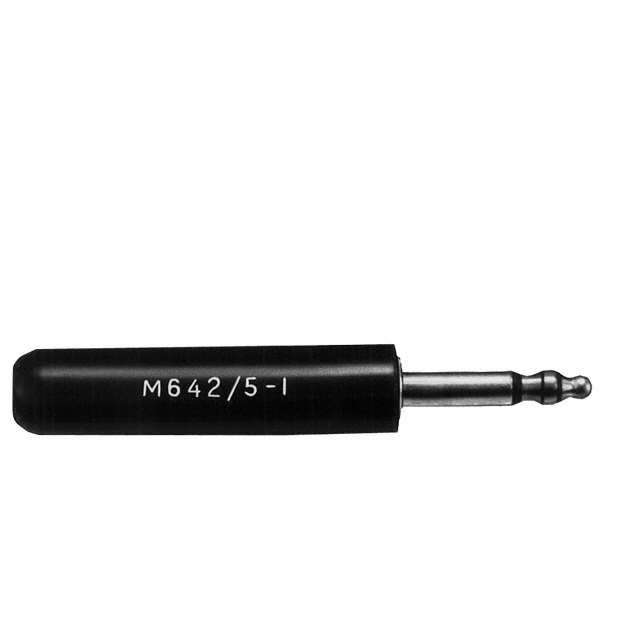

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 480X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 480X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 480X |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG STEREO 5.23MM 3COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $7.983 | $6.069 | $5.905 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 480X | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG STEREO 5.23MM 3COND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5157 pcs | Data sheet | 480X Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Screw |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Shielded |
| Series | LITTEL-PLUG® 480 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 480X-ND SC2673 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Free Hanging (In-Line) | Mating Length/Depth | 1.090" (27.70mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 5.23mm (0.206") | Includes | 5 pcs - 1 Connector, 1 Handle, 3 Screws |
| Housing Material | Thermoplastic | Gender | Male |
| Features | Internal Interlock | Detailed Description | 5.23mm (0.206") Phone Plug Stereo (3 Conductor, TRS) Connector Screw |
| Contact Material - Plating | Natural | Contact Material | Copper Alloy |
| Connector Type | Phone Plug | Cable Opening | 0.297" (7.54mm) |
| Body Material | Brass | Body Color | Gold, Black |
| Actual Diameter | 0.207" (5.26mm) |
