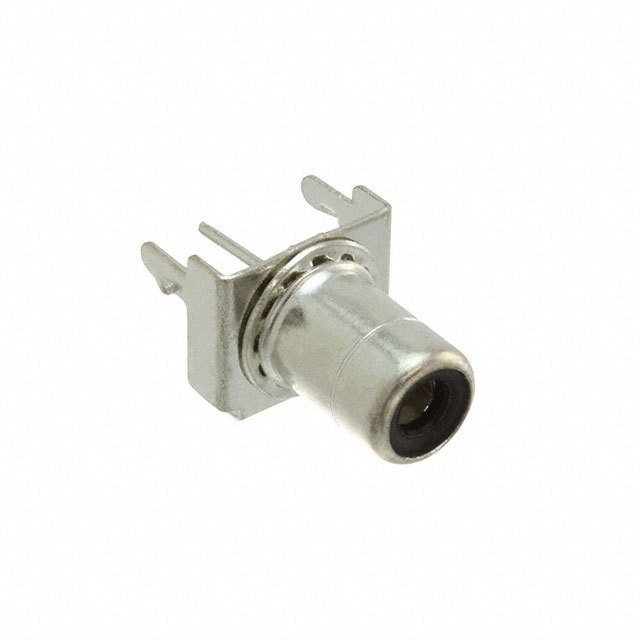

3514PCX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3514PCX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3514PCX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3514PCX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3514PCX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4248 pcs | Data sheet | 3514PCX Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 3514PCX-ND SC2395 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Through Hole | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | Black | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | - | Housing Material | - |
| Gender | Female | Features | Mounting Hardware |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phono (RCA) Jack |
| Cable Opening | - | Body Material | Steel |
| Body Color | Silver | Actual Diameter | - |
