3503

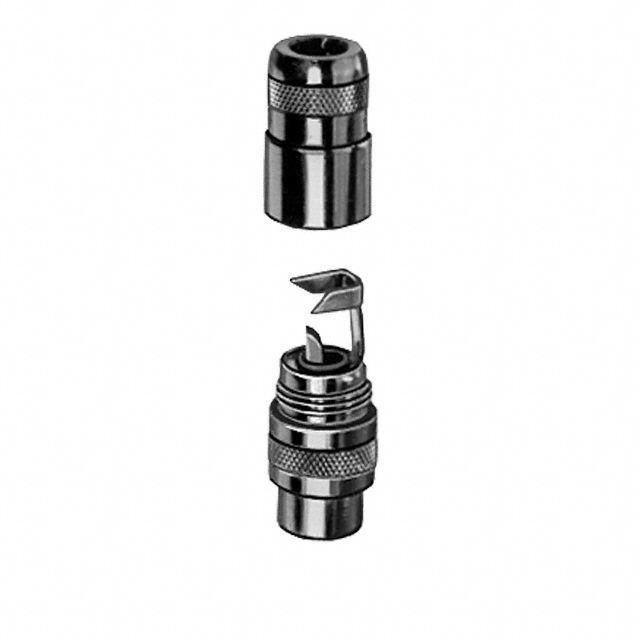

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3503 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCA JACK MONO 3.2MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3503 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCA JACK MONO 3.2MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6048 pcs | Data sheet | Jacks & Plugs |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder Cup |
| Signal Lines | Mono | Shielding | Shielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | SC1139 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Free Hanging (In-Line) | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Includes | 2 pcs - 1 Connector, 1 Handle | Housing Material | - |
| Gender | Female | Features | Mounting Hardware |
| Detailed Description | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Cup | Contact Material - Plating | Nickel |
| Contact Material | Copper Alloy | Connector Type | Phono (RCA) Jack |
| Cable Opening | 0.205" (5.20mm) | Body Material | Copper Alloy |
| Body Color | Silver | Actual Diameter | - |
