Home > Products > Connectors, Interconnects > Circular Connectors > 3282-9SG-3DC

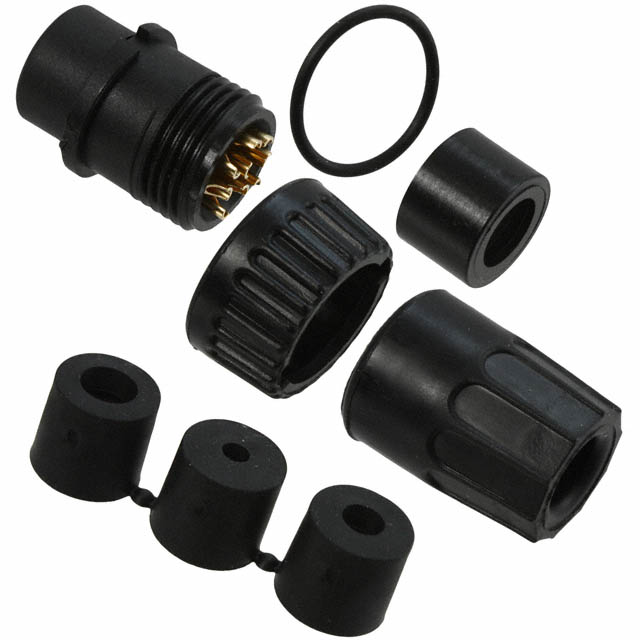

3282-9SG-3DC

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3282-9SG-3DC with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	3282-9SG-3DC
Manufacturer	Conxall / Switchcraft
Description	CONN PLUG FMALE 9POS SOLDER CUP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6641 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$6.033	$5.445	$5.217	$4.987

Product parameter
Data sheet

Product parameter

Part Number	3282-9SG-3DC	Manufacturer	Conxall / Switchcraft
Description	CONN PLUG FMALE 9POS SOLDER CUP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6641 pcs	Data sheet	Cable Assemblies/Connector Catalog
Category	Connectors, Interconnects	Voltage Rating	600V
Termination	Solder Cup	Shielding	Unshielded
Shell Size, MIL	-	Shell Size - Insert	-
Shell Material	Polyamide (PA), Nylon	Shell Finish	-
Series	Multi-Con-X®	Packaging	Bulk
Other Names	32829SG3DC SC1229	Orientation	Keyed
Operating Temperature	-40°C ~ 115°C	Number of Positions	9
Mounting Type	Free Hanging (In-Line)	Mounting Feature	-
Material Flammability Rating	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insert Material	-
Ingress Protection	Weathertight	Features	Backshell
Fastening Type	Bayonet Lock	Detailed Description	9 Position Circular Connector Plug, Female Sockets Solder Cup Gold
Current Rating	5.6A	Contact Material	Brass
Contact Finish Thickness - Mating	-	Contact Finish - Mating	Gold
Connector Type	Plug, Female Sockets	Color	Black
Cable Opening	-	Backshell Material, Plating	Polyamide (PA), Nylon
Applications	-
