238
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 238 with confidence from Components-World.HK, 1 Year Warranty
Dowload 238 Details in PDFSee Product Specifications for product details.
Buy 238 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 238 |
|---|---|
| Manufacturer | Conxall / Switchcraft |

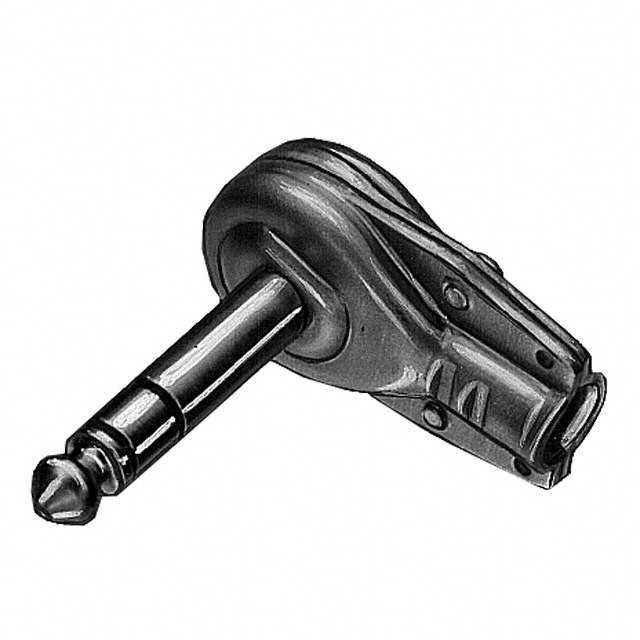

| Description | CONN PLUG STEREO 6.35MM RA 3COND |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 238 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG STEREO 6.35MM RA 3COND | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5599 pcs | Data sheet | 238(X) Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 500VAC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Shielded |
| Series | 230 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | SC1069 |
| Operating Temperature | - | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mating Length/Depth | 1.188" (30.20mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 5 pcs - 1 Connector, 2 pc Handle, 2 Screws | Housing Material | Plastic |
| Gender | Male | Features | - |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Plug |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver | Actual Diameter | 0.250" (6.35mm) |
