236

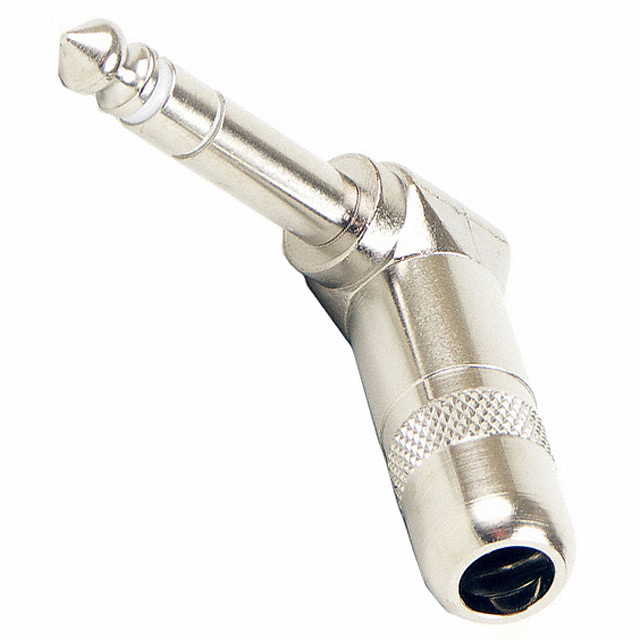

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 236 with confidence from Components-World.HK, 1 Year Warranty
Dowload 236 Details in PDFSee Product Specifications for product details.
Buy 236 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 236 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG STEREO 6.35MM RA 3COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | ||||
|---|---|---|---|---|---|
| $5.604 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 236 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG STEREO 6.35MM RA 3COND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5467 pcs | Data sheet | Jacks and Plugs226 Drawing236 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 500VAC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | 236 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 236-ND Q1143642 SC236 |
| Operating Temperature | -20°C ~ 65°C | Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Housing Material | Brass | Gender | Male |
| Features | - | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Contact Material - Plating | Nickel | Contact Material | Copper Alloy |
| Connector Type | Phone Plug | Cable Opening | 0.297" (7.54mm) |
| Body Material | Zinc Die Cast | Body Color | Silver |
| Actual Diameter | 0.250" (6.35mm) |
