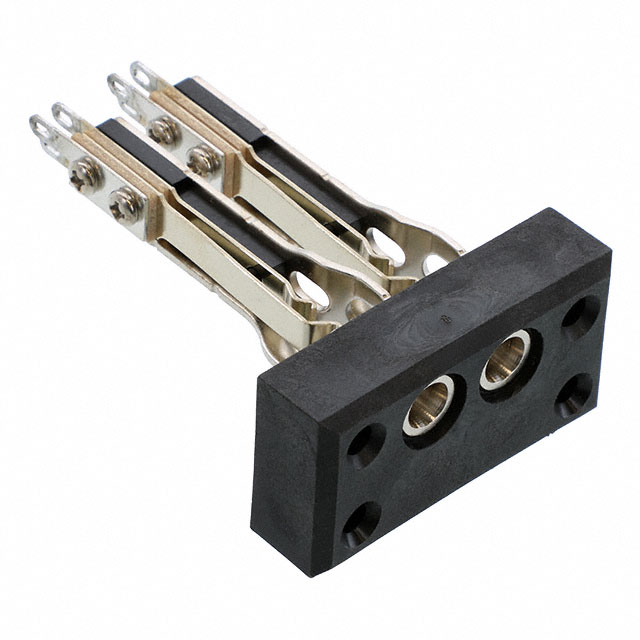

2332BX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2332BX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2332BX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2332BX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK DUAL STEREO PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $19.326 | $15.557 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2332BX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK DUAL STEREO PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2001 pcs | Data sheet | 2332BX Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) | Shielding | Unshielded |
| Series | DUAL-JAX BLOCK® | Panel Hole Size | - |
| Packaging | Bulk | Other Names | 2332BX-ND SC2390 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Sets of 3 Conductors, 6 Contacts |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | - | Housing Material | Thermoplastic |
| Gender | Female | Features | - |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) | Contact Material - Plating | Tin |
| Contact Material | Steel | Connector Type | Phone Jack, Dual |
| Cable Opening | - | Body Material | Steel |
| Body Color | Silver, Black | Actual Diameter | 0.250" (6.35mm) |
