226

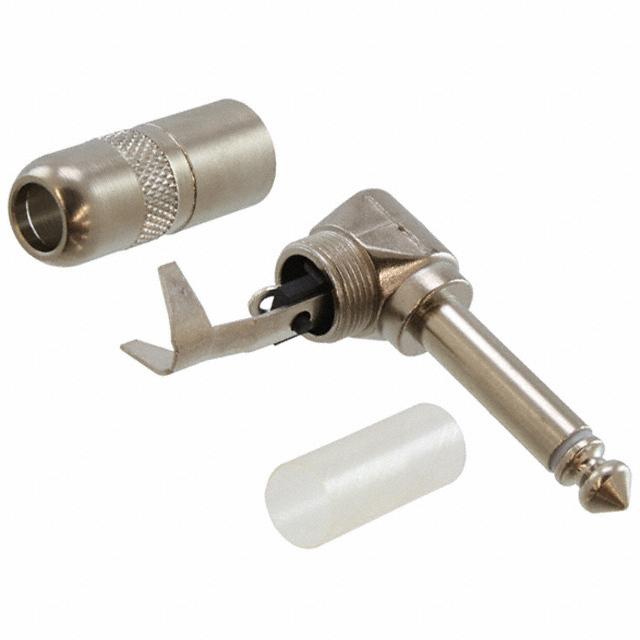

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 226 with confidence from Components-World.HK, 1 Year Warranty
Dowload 226 Details in PDFSee Product Specifications for product details.
Buy 226 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 226 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG MONO 6.35MM R/A 2COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.907 | $1.755 | $1.655 | $1.605 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.53 | $1.505 | $1.475 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 226 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG MONO 6.35MM R/A 2COND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26144 pcs | Data sheet | Jacks and Plugs226 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | 500VAC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Shielded |
| Series | 226 | Panel Hole Size | - |
| Packaging | Bulk | Other Names | SC1143 |
| Operating Temperature | -20°C ~ 65°C | Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mating Length/Depth | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone | Includes | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Housing Material | Brass | Gender | Male |
| Features | - | Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s) |
| Contact Material - Plating | Nickel | Contact Material | Brass |
| Connector Type | Phone Plug | Cable Opening | 0.297" (7.54mm) |
| Body Material | Copper Alloy | Body Color | Silver |
| Actual Diameter | 0.249" (6.32mm) |
