17282-2SG-300

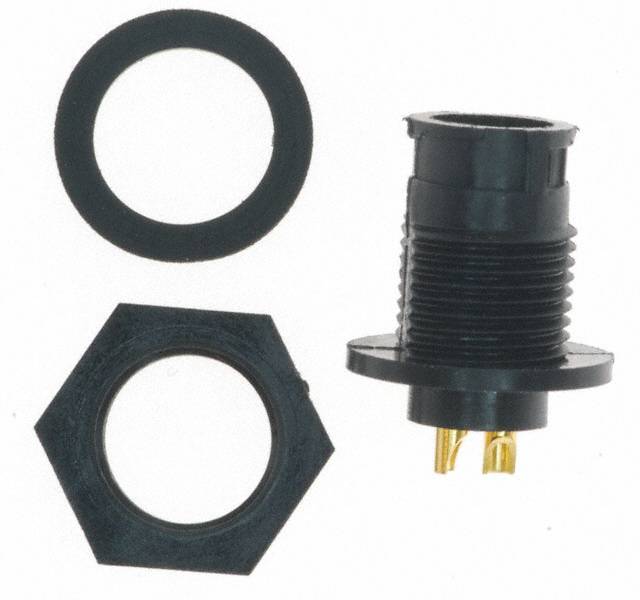

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 17282-2SG-300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 17282-2SG-300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 17282-2SG-300 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT FMALE 2POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.622 | $1.557 | $1.427 | $1.362 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.298 | $1.135 | $1.103 | $0.992 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 17282-2SG-300 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT FMALE 2POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38556 pcs | Data sheet | Assembly Instr. SheetCable Assemblies/Connector CatalogMaxi-Con-X Panel Cutout DrawingMaxi(Mini)-Con-X DrawingMicro-Con-X® 2-7 Bulletin |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Micro-Con-X® | Packaging | Bulk |
| Other Names | 172822SG300 SC1207 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 2 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | UL94 HB | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Bayonet Lock | Detailed Description | 2 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 7.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | Data, Industrial, Instrumentation, Medical |
