16980-7PG-522

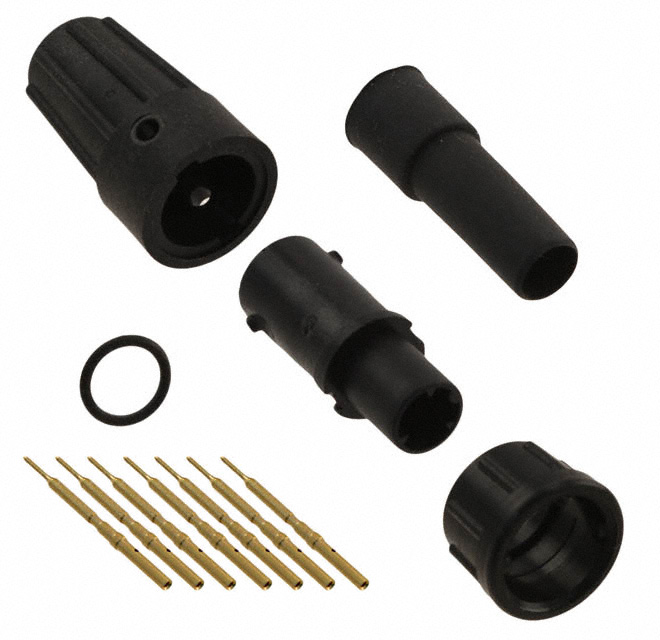

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 16980-7PG-522 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 16980-7PG-522 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 16980-7PG-522 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG MALE 7POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.529 | $3.375 | $3.068 | $2.915 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.838 | $2.531 | $2.378 | $2.216 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 16980-7PG-522 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG MALE 7POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14239 pcs | Data sheet | Cable Assemblies/Connector CatalogMicro-Con-X® 2-7 Bulletin |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Crimp | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | Micro-Con-X® | Packaging | Bulk |
| Other Names | 169807PG522 SC1425 |
Orientation | B |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 7 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Bayonet Lock |
| Detailed Description | 7 Position Circular Connector Plug, Male Pins Crimp Gold | Current Rating | 3.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black | Cable Opening | 0.220" ~ 0.230" (5.59mm ~ 5.84mm) |
| Backshell Material, Plating | Thermoplastic | Applications | Data, Industrial, Instrumentation, Medical |
