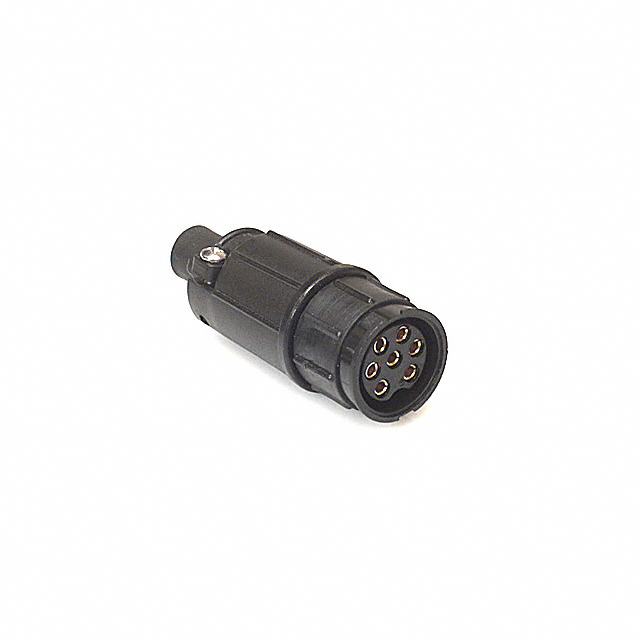

15182-7SG-326
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15182-7SG-326 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15182-7SG-326 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15182-7SG-326 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT FMALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $6.549 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15182-7SG-326 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT FMALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5137 pcs | Data sheet | Cable Assemblies/Connector CatalogMaxi(Mini)-Con-X Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Maxi-Con-X® | Packaging | Bulk |
| Other Names | SC1197 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 7 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | Weathertight | Features | Backshell, Cable Clamp |
| Fastening Type | Bayonet Lock | Detailed Description | 7 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | - | Contact Material | Brass |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black |
| Cable Opening | 0.260" ~ 0.300" (6.60mm ~ 7.62mm) | Backshell Material, Plating | Polyamide (PA), Nylon |
| Applications | - |
