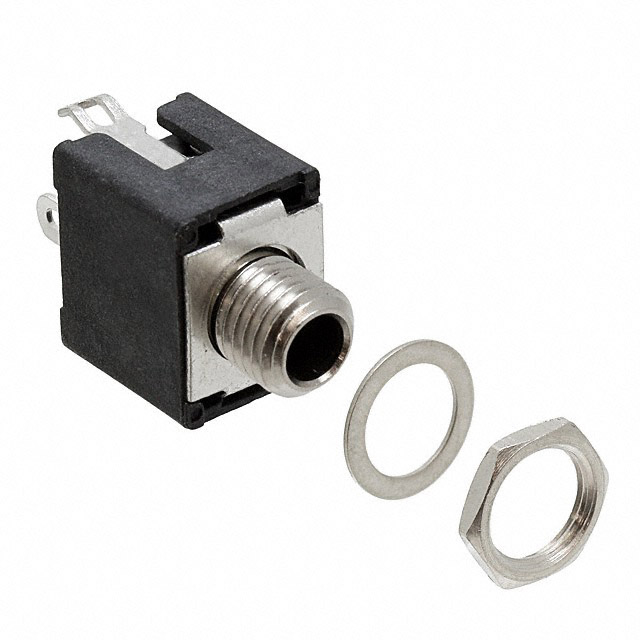

142AX
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 142AX with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 142AX with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 142AX |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 3.55MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.27 | $1.025 | $0.94 | $0.897 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.855 | $0.748 | $0.742 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 142AX | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 3.55MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48583 pcs | Data sheet | Jack Schematics142AX |
| Category | Connectors, Interconnects | Voltage - Rated | 48VDC |
| Thread Size | 1/4"-32 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | TINI-D-JAX® | Panel Hole Size | 0.250" (6.35mm) |
| Packaging | Bulk | Other Names | 142AX-ND Q3913557 SC1810 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.55mm (0.14", Tini Plug) |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Plastic |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 3.55mm (0.14", Tini Plug) Phone Jack Mono Connector Solder Eyelet(s) | Current Rating | 250mA |
| Contact Material - Plating | Silver | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Copper Alloy | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
