14292-18SG-300

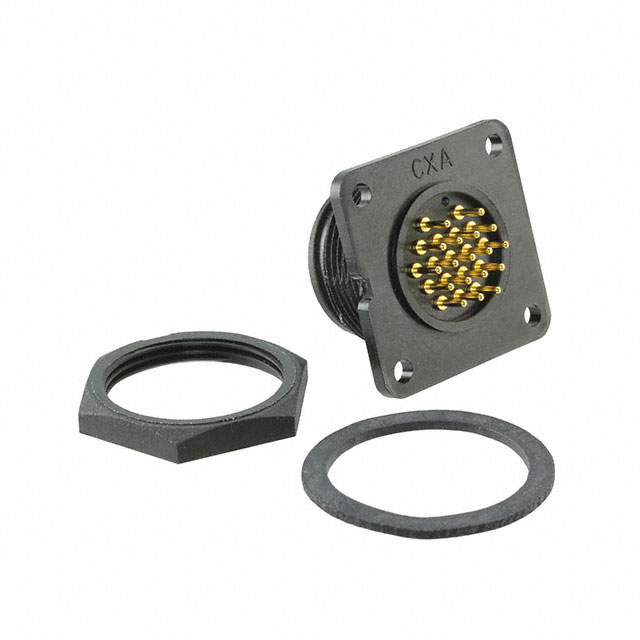

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 14292-18SG-300 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 14292-18SG-300 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 14292-18SG-300 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN RCPT FMALE 18POS GOLD SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $12.627 | $11.397 | $10.919 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $10.237 | $9.896 | $9.35 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 14292-18SG-300 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN RCPT FMALE 18POS GOLD SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3956 pcs | Data sheet | Cable Assemblies/Connector CatalogMaxi-Con-X Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Maxi-Con-X® | Packaging | Bulk |
| Other Names | 14292-18SG-300-ND SC2897 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 18 |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut, Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | Weathertight |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 18 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | - |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
