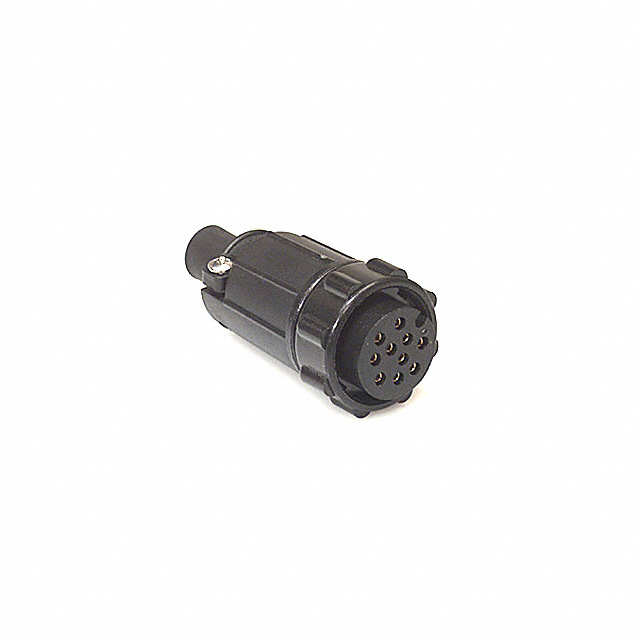

13382-10SG-326
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 13382-10SG-326 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 13382-10SG-326 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 13382-10SG-326 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE 10POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.84 | $7.978 | $7.644 | $7.166 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.927 | $6.545 | $6.354 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 13382-10SG-326 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 10POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5370 pcs | Data sheet | Cable Assemblies/Connector CatalogMaxi(Mini)-Con-X Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Maxi-Con-X® | Packaging | Bulk |
| Other Names | SC1189 | Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 10 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | Weathertight | Features | Backshell, Cable Clamp |
| Fastening Type | Bayonet Lock | Detailed Description | 10 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Current Rating | - | Contact Material | Brass |
| Contact Finish Thickness - Mating | - | Contact Finish - Mating | Gold |
| Connector Type | Plug, Female Sockets | Color | Black |
| Cable Opening | 0.260" ~ 0.300" (6.60mm ~ 7.62mm) | Backshell Material, Plating | Polyamide (PA), Nylon |
| Applications | - |
