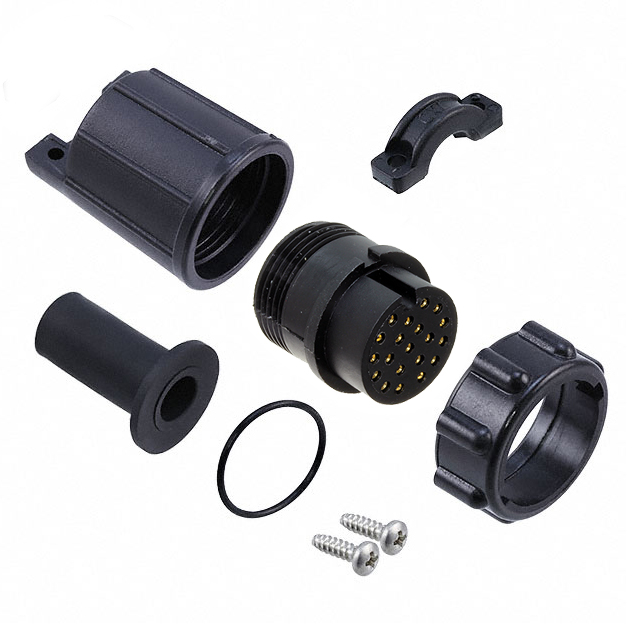

13282-20SG-331
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 13282-20SG-331 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 13282-20SG-331 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 13282-20SG-331 |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG FMALE 20POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.937 | $10.776 | $10.324 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.679 | $9.356 | $8.84 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 13282-20SG-331 | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN PLUG FMALE 20POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4102 pcs | Data sheet | Cable Assemblies/Connector CatalogMaxi-Con-X Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder Cup | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | - |
| Shell Material | Polyamide (PA), Nylon | Shell Finish | - |
| Series | Maxi-Con-X® | Packaging | Bulk |
| Other Names | 13282-20SG-331-ND SC2896 |
Orientation | Keyed |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 20 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | Weathertight |
| Features | Backshell, Cable Clamp | Fastening Type | Bayonet Lock |
| Detailed Description | 20 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | - |
| Contact Material | Brass | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Black | Cable Opening | 0.310" ~ 0.380" (7.87mm ~ 9.65mm) |
| Backshell Material, Plating | Polyamide (PA), Nylon | Applications | - |
