12A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 12A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 12A |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN JACK MONO 6.35MM PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.674 | $0.62 | $0.585 | $0.567 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.54 | $0.531 | $0.521 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 12A | Manufacturer | Conxall / Switchcraft |
|---|---|---|---|
| Description | CONN JACK MONO 6.35MM PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65792 pcs | Data sheet | Jack Schematics12A Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Thread Size | 3/8"-32 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | LITTEL-JAX® | Panel Hole Size | 0.375" (9.52mm) |
| Packaging | Bulk | Other Names | SC1089 |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |

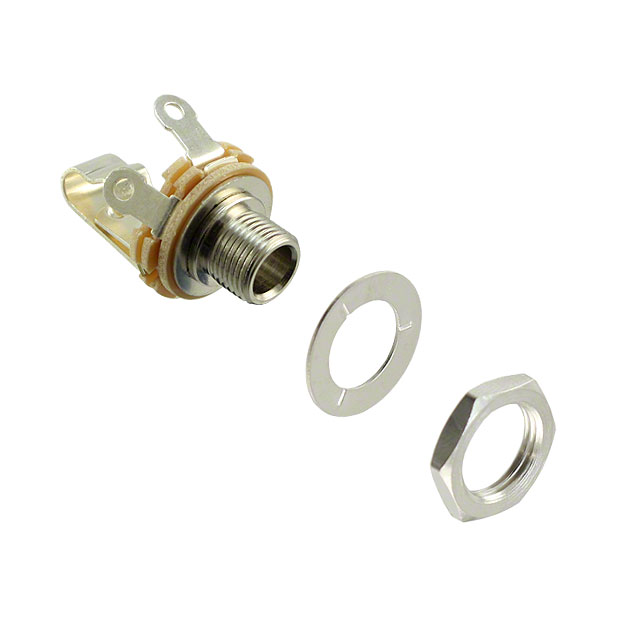

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | - |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder Eyelet(s) | Contact Material - Plating | Tin |
| Contact Material | Brass | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | Brass |
| Body Color | Silver | Actual Diameter | 0.253" (6.43mm) |
