Home > Products > Switches > Toggle Switches > 12016X

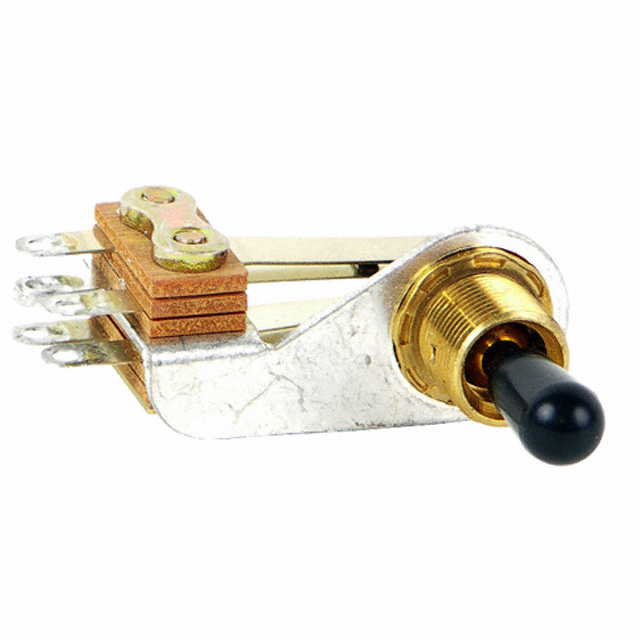

12016X

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 12016X with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	12016X
Manufacturer	Conxall / Switchcraft
Description	SWITCH TOGGLE 3POS R/A 1B/1B
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1924 pcs
Reference Price (In US Dollars)	10 pcs
Reference Price (In US Dollars)	$17.047

Product parameter

Product parameter

Part Number	12016X	Manufacturer	Conxall / Switchcraft
Description	SWITCH TOGGLE 3POS R/A 1B/1B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1924 pcs	Data sheet
Category	Switches	Termination Style	Solder Lug
Switch Function	-	Series	12000
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-	Mounting Type	Panel Mount, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	-	Detailed Description	Toggle Switch Panel Mount, Right Angle
Current Rating	-	Circuit	-
Bushing Thread	15/32-32	Actuator Type	Standard Round
Actuator Material	Thermoplastic	Actuator Length	22.22mm
