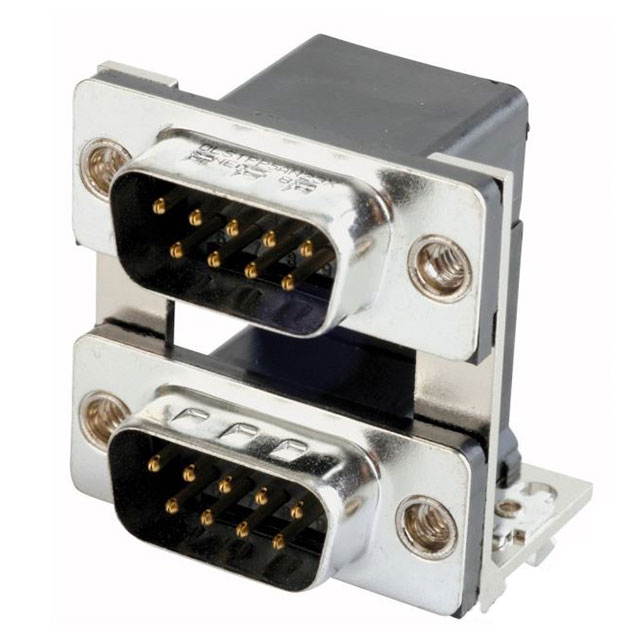

DLS1PP5AN23X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DLS1PP5AN23X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DLS1PP5AN23X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DLS1PP5AN23X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB PLUG 9POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.292 | $2.195 | $2.004 | $1.909 | $1.813 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.623 | $1.527 | $1.336 | $1.269 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DLS1PP5AN23X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28773 pcs | Data sheet | DLSxPP5AN23X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 626-1952 DLS1PP5AN23X-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2, 2 | Number of Positions | 9, 9 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Grounding Indents, Mounting Brackets |
| Detailed Description | 9, 9 Position D-Sub - Stacked Plug, Male Pins Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Stamped | Contact Finish Thickness | 8.00µin (0.203µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub - Stacked | Color | Black |
| Backset Spacing | - |
