302A11269X

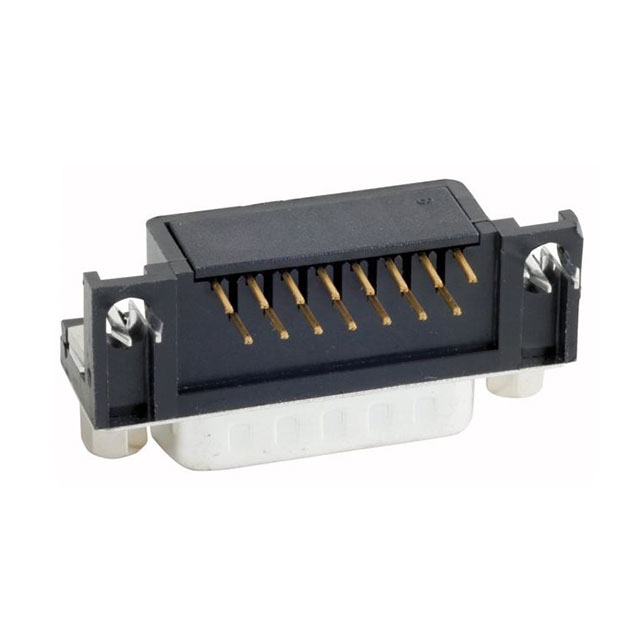

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 302A11269X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 302A11269X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 302A11269X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 25POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.694 | $0.63 | $0.591 | $0.566 | $0.54 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.488 | $0.45 | $0.386 | $0.36 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 302A11269X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60748 pcs | Data sheet | 302A112x9X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Bulk |
| Other Names | 302A11269X-ND 626-1936 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Lock |
| Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 7.5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Stamped | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | 0.315" (7.99mm) |
