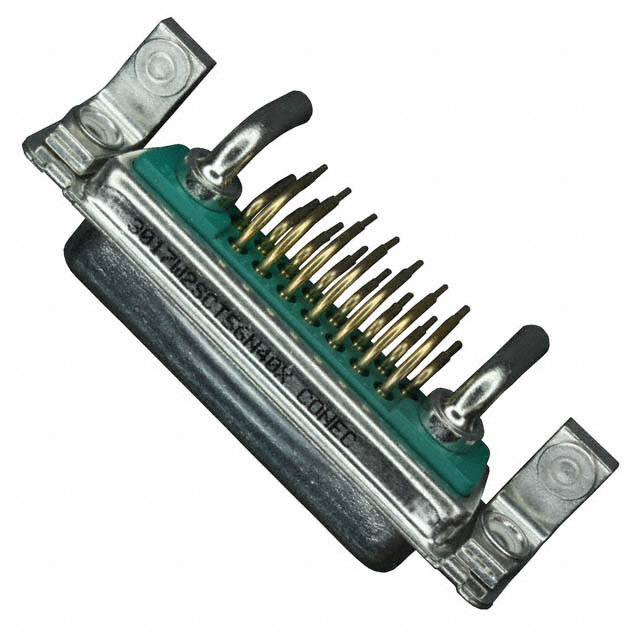

3017W2SCT56N40X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3017W2SCT56N40X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3017W2SCT56N40X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3017W2SCT56N40X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 17POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.087 | $8.203 | $7.859 | $7.368 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $7.122 | $6.729 | $6.533 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3017W2SCT56N40X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 17POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5325 pcs | Data sheet | 3017W2SCT56N40X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) - 17W2 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | 626-1124 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 17 (15 + 2 Power) |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock, Mounting Brackets |
| Detailed Description | 17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector | Current Rating | 5A, 20A |
| Contact Type | Signal and Power | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, Combo | Color | Green |
| Backset Spacing | 0.283" (7.20mm) |
