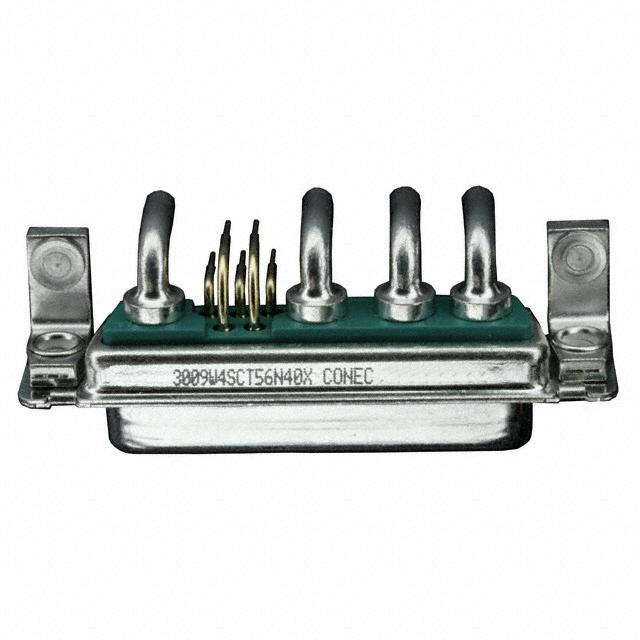

3009W4SCT56N40X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3009W4SCT56N40X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3009W4SCT56N40X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3009W4SCT56N40X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.025 | $7.244 | $6.941 | $6.507 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.29 | $5.943 | $5.769 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3009W4SCT56N40X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6851 pcs | Data sheet | 3009W4SCT56N40X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) - 9W4 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | 626-1120 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 (5 + 4 Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock |
| Detailed Description | 9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector | Current Rating | 5A, 20A |
| Contact Type | Signal and Power | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, Combo | Color | Green |
| Backset Spacing | 0.287" (7.28mm) |
