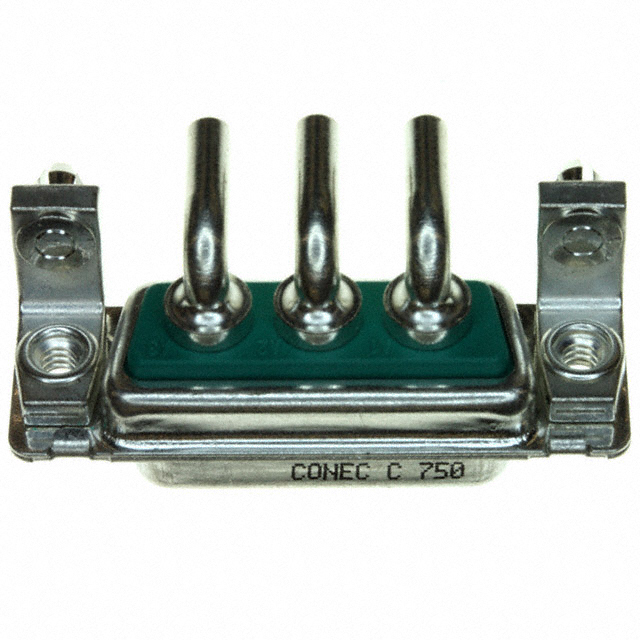

3003W3SXX56N40X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3003W3SXX56N40X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3003W3SXX56N40X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3003W3SXX56N40X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 3POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $6.192 | $5.75 | $5.16 | $5.013 | ||
| 120 pcs | 270 pcs | 510 pcs | |||
| $4.423 | $4.128 | $4.04 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3003W3SXX56N40X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 3POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7551 pcs | Data sheet | 3003W3SXX56N40X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) - 3W3 | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | 626-1104 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions | 3 (Power) |
| Mounting Type | Board Edge, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (4-40) | Features | Board Lock |
| Detailed Description | 3 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector | Current Rating | 20A |
| Contact Type | Power | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, Combo | Color | Green |
| Backset Spacing | 0.459" (11.65mm) |
