164A17309X

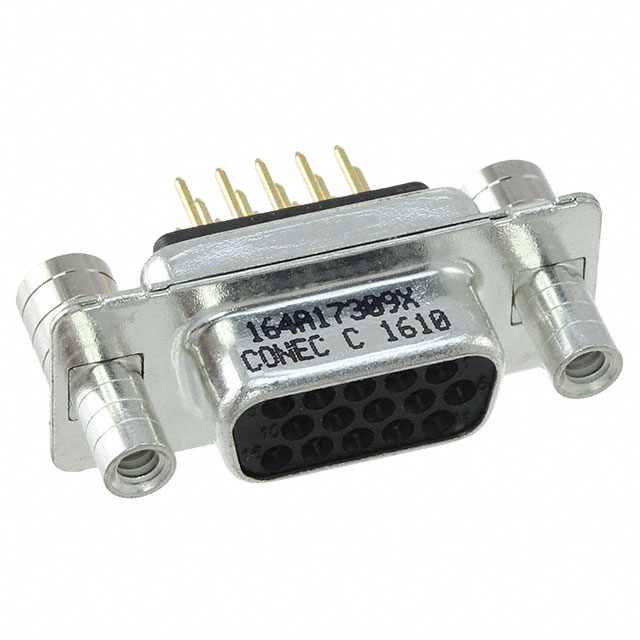

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 164A17309X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 164A17309X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 164A17309X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB HD RCPT 15P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.671 | $3.511 | $3.192 | $3.032 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.952 | $2.633 | $2.474 | $2.186 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 164A17309X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 15P VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16109 pcs | Data sheet | 164A17309X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 60V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Tin Plated |
| Series | 164A | Packaging | Bulk |
| Other Names | 164A17309X-ND 626-1803 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Board Side (4-40); Mating Side (4-40) | Features | - |
| Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector | Current Rating | 3A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | Machined | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub, High Density | Color | Black |
| Backset Spacing | - |
