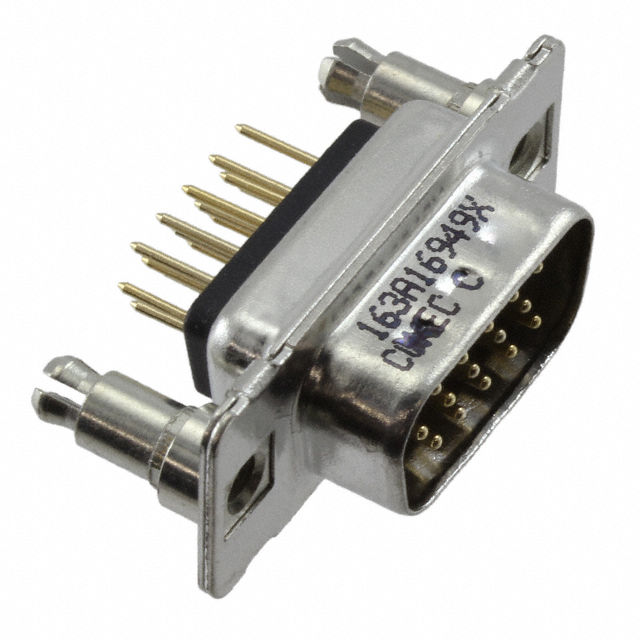

163A16949X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 163A16949X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 163A16949X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 163A16949X |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB HD PLUG 15P VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.212 | $3.073 | $2.794 | $2.654 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.584 | $2.305 | $2.165 | $1.914 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 163A16949X | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB HD PLUG 15P VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19910 pcs | Data sheet | 163A169x9X Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 60V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Tin Plated |
| Series | 163A | Packaging | Bulk |
| Other Names | 163A16949X-ND 626-2025 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP20 |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Board Side (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
