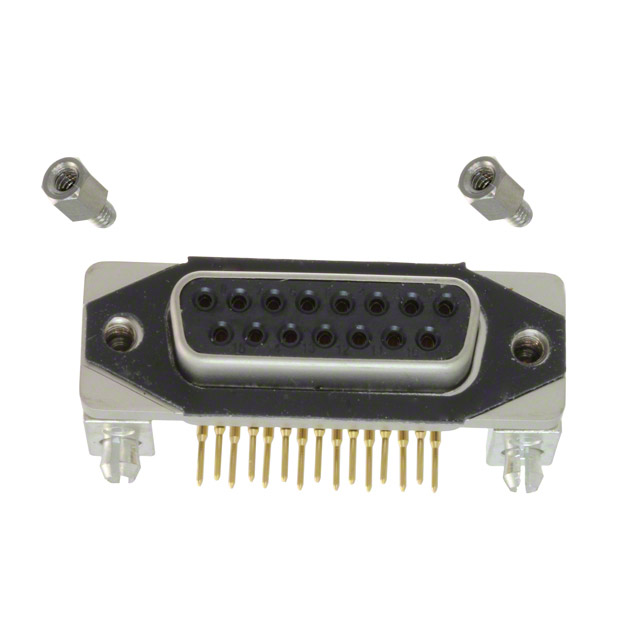

15-006603
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-006603 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-006603 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-006603 |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.638 | $10.504 | $10.064 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $9.435 | $9.121 | $8.617 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-006603 | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3730 pcs | Data sheet | 15-00660x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Series | SlimCon | Packaging | Bulk |
| Other Names | 626-1849 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Features | Board Lock, Gasket, Mounting Brackets |
| Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | 0.328" (8.34mm) |
