15-002243

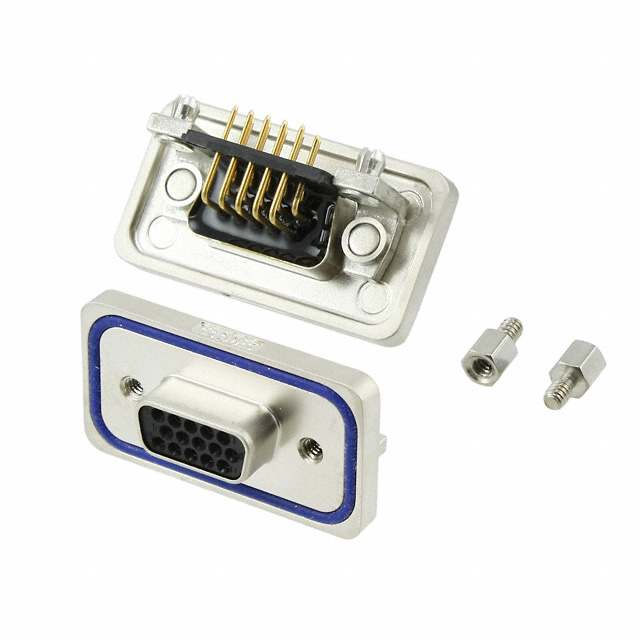

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-002243 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-002243 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-002243 |
|---|---|
| Manufacturer | Conec |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.333 | $9.326 | $8.935 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.377 | $8.098 | $7.651 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-002243 | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4910 pcs | Data sheet | 15-002243 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 60V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Series | - | Packaging | Bulk |
| Other Names | 15002243 626-1458 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Mounting Brackets | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.220" (5.60mm) |
