15-000803

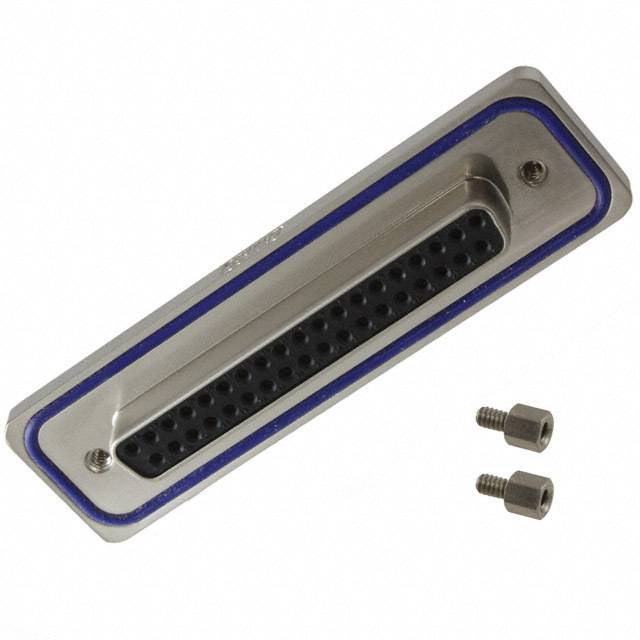

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15-000803 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15-000803 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15-000803 |
|---|---|
| Manufacturer | Conec |
| Description | CONN D-SUB RCPT 37POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $10.993 | $9.925 | $9.509 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.915 | $8.618 | $8.142 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15-000803 | Manufacturer | Conec |
|---|---|---|---|
| Description | CONN D-SUB RCPT 37POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4084 pcs | Data sheet | 15-00080x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 4 (DC, C) | Shell Material, Finish | Zinc Die Cast, Nickel Plated |
| Series | - | Packaging | Bulk |
| Other Names | 15000803 626-1442 |
Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 37 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Mounting Brackets | Detailed Description | 37 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 7.5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.260" (6.61mm) |
