Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > CDBURT0230LL-HF

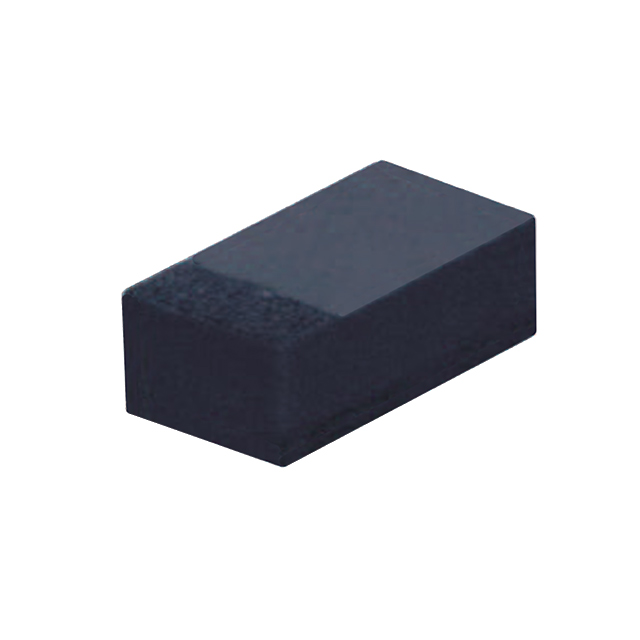

CDBURT0230LL-HF

CDBURT0230LL-HF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDBURT0230LL-HF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CDBURT0230LL-HF
Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 20V 200MA 0603
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 936263 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.142	$0.129	$0.072	$0.039	$0.026

Product parameter
Data sheet

Product parameter

Part Number	CDBURT0230LL-HF	Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 20V 200MA 0603	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	936263 pcs	Data sheet	CDBURT0230LL-HF
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	390mV @ 200mA
Voltage - DC Reverse (Vr) (Max)	20V	Supplier Device Package	0603/SOD-523F
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Packaging	Cut Tape (CT)	Package / Case	SC-79, SOD-523F
Other Names	641-1668-1	Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 20V 200mA Surface Mount 0603/SOD-523F
Current - Reverse Leakage @ Vr	30µA @ 10V	Current - Average Rectified (Io)	200mA
Capacitance @ Vr, F	30pF @ 1V, 1MHz
