Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > CDBQR70

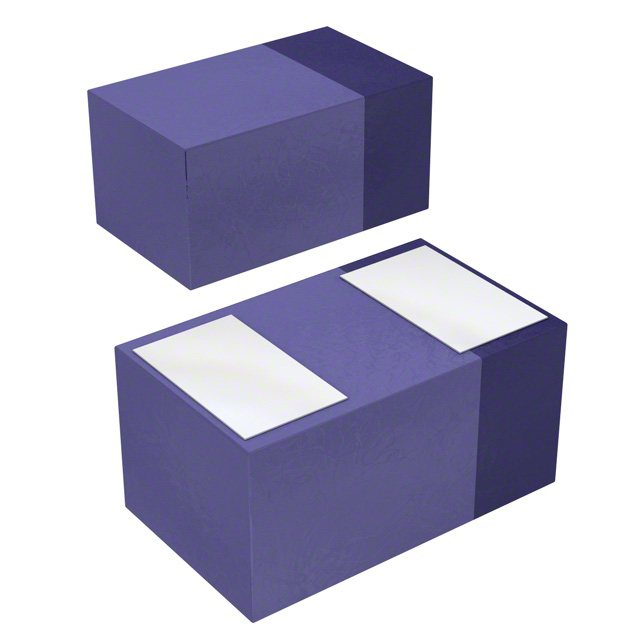

CDBQR70

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CDBQR70 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	CDBQR70
Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 70V 70MA 0402
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 446529 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.161	$0.127	$0.087	$0.06	$0.045

Product parameter
Data sheet

Product parameter

Part Number	CDBQR70	Manufacturer	Comchip Technology
Description	DIODE SCHOTTKY 70V 70MA 0402	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	446529 pcs	Data sheet	CDBQR70
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1V @ 15mA
Voltage - DC Reverse (Vr) (Max)	70V	Supplier Device Package	0402/SOD-923F
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Reverse Recovery Time (trr)	5ns	Packaging	Cut Tape (CT)
Package / Case	0402 (1005 Metric)	Other Names	641-1281-1
Operating Temperature - Junction	125°C (Max)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 70V 70mA Surface Mount 0402/SOD-923F	Current - Reverse Leakage @ Vr	100nA @ 50V
Current - Average Rectified (Io)	70mA	Capacitance @ Vr, F	2pF @ 0V, 1MHz
Base Part Number	CDBQR70
