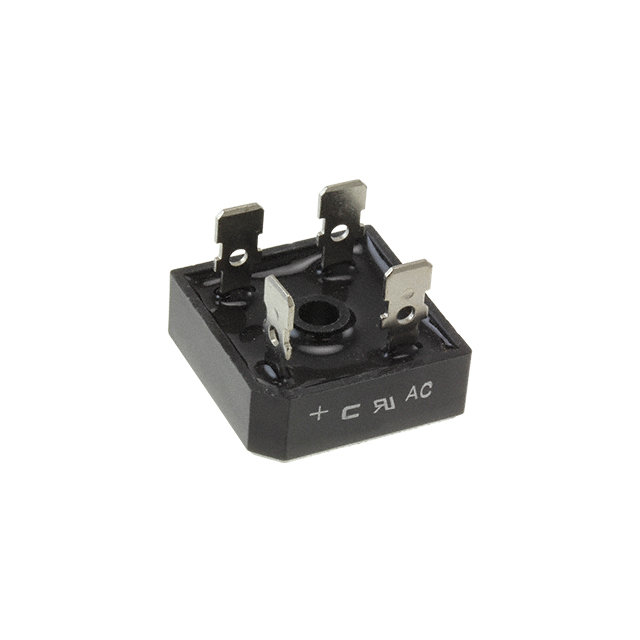

BR5010-G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BR5010-G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BR5010-G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BR5010-G |
|---|---|
| Manufacturer | Comchip Technology |
| Description | BRIDGE DIODE 50A 1000V BR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.243 | $1.109 | $0.998 | $0.909 | $0.82 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.736 | $0.621 | $0.59 | $0.568 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BR5010-G | Manufacturer | Comchip Technology |
|---|---|---|---|
| Description | BRIDGE DIODE 50A 1000V BR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58251 pcs | Data sheet | BR10005~1010-G |
| Category | Discrete Semiconductor Products | Voltage - Peak Reverse (Max) | 1kV |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 25A | Technology | Standard |
| Supplier Device Package | BR | Series | - |
| Packaging | Tray | Package / Case | 4-Square, BR |
| Other Names | 641-1948 BR5010-G-ND |
Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | QC Terminal | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Single Phase | Detailed Description | Bridge Rectifier Single Phase Standard 1kV QC Terminal BR |
| Current - Reverse Leakage @ Vr | 10µA @ 50V | Current - Average Rectified (Io) | 50A |
